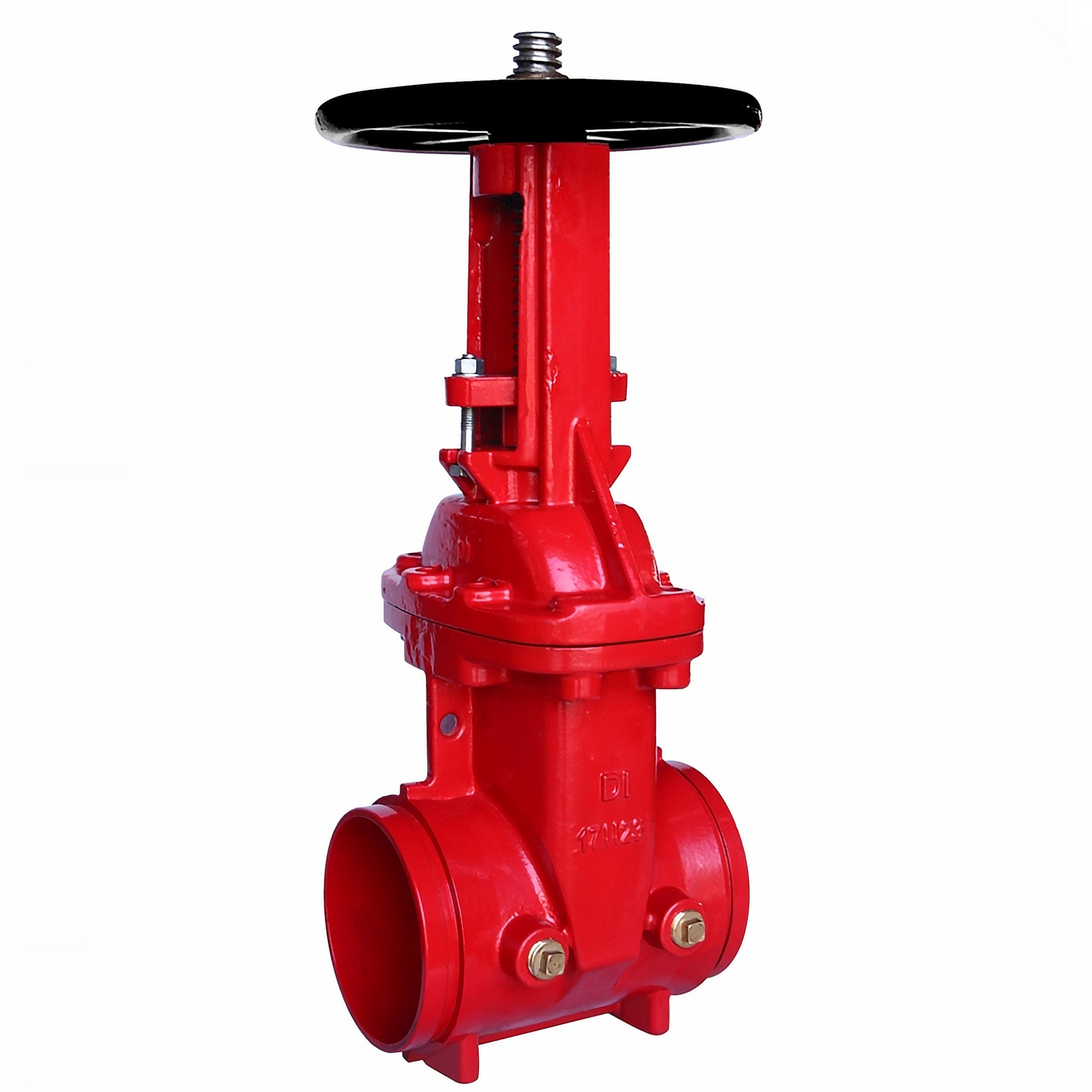

AWWA C515 OS&Y GRVD Gate Valve (JKDZ81GRG/JKDZ81-300A)
AWWA C515 OS&Y GRVD Gate Valve (JKDZ81GRG/JKDZ81-300A)
Share
Regular price
$800.00
Regular price
Sale price
$800.00
Unit price
/
per
Overview:
The AWWA C515 OS&Y GRVD Gate Valve (JKDZ81GRG/JKDZ81-300A) is designed for fire protection and high-pressure water distribution systems. Featuring an outside screw & yoke (OS&Y) design, this valve offers clear visibility of the valve's open or closed position, ensuring reliable performance in critical applications. Its grooved connections provide easy installation and integration into existing systems.
Key Features:
- Size Range: 2.5" - 12"
- Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
- Certification: Approved by UL, FM, and NSF
- Design Standards: Grooved to AWWA C606 / ISO 6182
- Pressure Rating: 300 PSI (200 PSI and 250 PSI available upon request)
- Connection Type: Grooved (GRVD)
- Operating Temperature: 32℉ - 176℉
- Applications: Ideal for fire protection systems and high-pressure water distribution networks requiring grooved connections for easy installation
Download Specification Data:
Fire Protection
-
AWWA C515 NRS Gate Valve Push On (JPSN)
Regular price From $650.00Regular priceUnit price / per -
AWWA C515 NRS Thread End (JQZ)
Regular price From $500.00Regular priceUnit price / per -
AWWA C515 NRS FLG x GRVD Gate Valve (JKDZ485GFR)
Regular price From $750.00Regular priceUnit price / per -
AWWA C515 NRS MJ x MJ Gate Valve With 2" OP Nut (JKDZ45M)
Regular price From $900.00Regular priceUnit price / per
Water Works
-
AWWA C517 Eccentric Plug Valve FLG x FLG Ends With Gearbox (KPL150-GH)
Regular price $5,000.00Regular priceUnit price / perSold out -
AWWA C517 Eccentric Plug Valve FLG x FLG Ends With Direct Nuts (JPL175-CNT)
Regular price From $1,200.00Regular priceUnit price / per -
AWWA C509 NRS Push On Gate Valve (JHZ004)
Regular price From $1,100.00Regular priceUnit price / per -
AWWA C509 MJxMJ Gate Valve with Handwheel & Gearbox (JHZ35XQ-G)
Regular price From $3,250.00Regular priceUnit price / per
Fittings
-

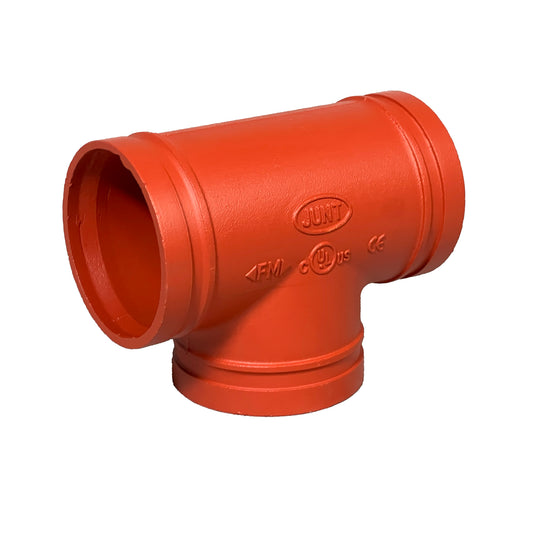

Groove Tee ( GRTE )
Regular price $34.99Regular priceUnit price / per -

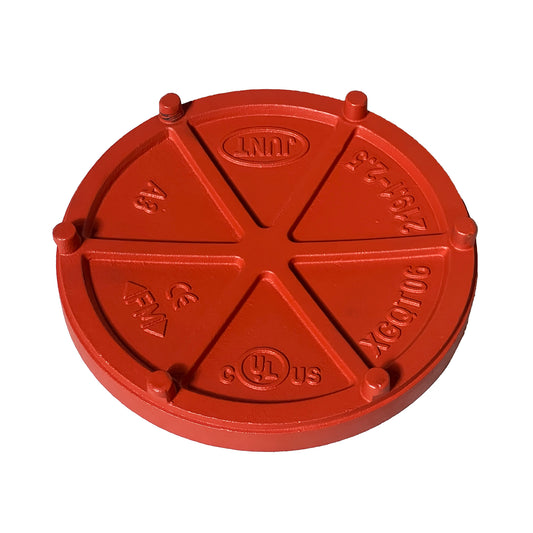

Groove Cap ( GRCP )
