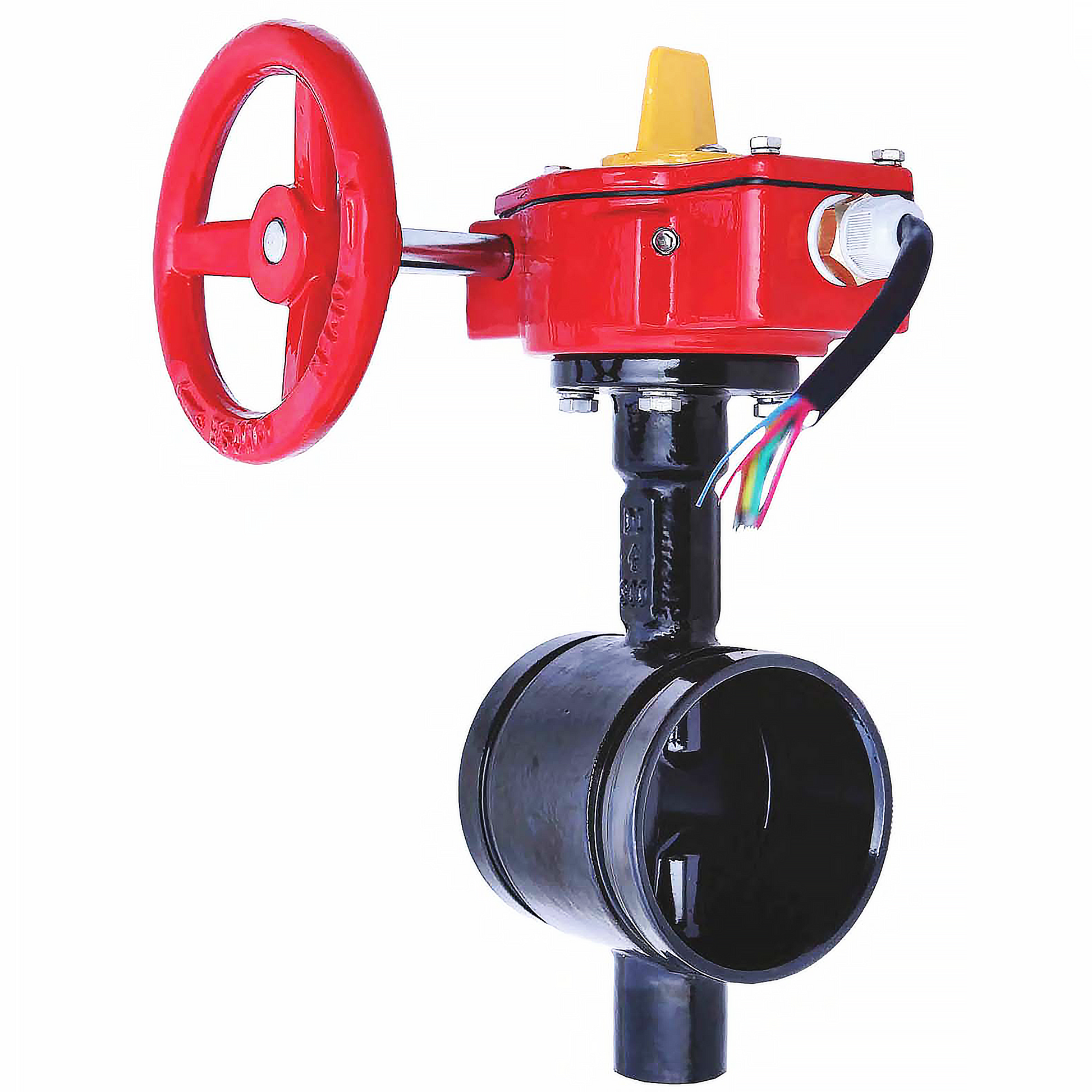

Grooved Butterfly Valve with Tamper Switch (JKDGD-381X/JKDGD-381Y)
Grooved Butterfly Valve with Tamper Switch (JKDGD-381X/JKDGD-381Y)
Share
Overview:
The Grooved Butterfly Valve with Tamper Switch (JKDGD-381X/JKDGD-381Y) is designed for efficient flow control in fire protection and water systems. Featuring a tamper switch for security monitoring, this valve ensures dependable operation in critical applications. Its grooved connections allow for quick and easy installation, making it ideal for high-pressure systems.
Key Features:
- Size Range: 2" - 12"
- Design Standard: API 609
- Connection Type: Grooved to AWWA C606 / ISO 6182
- Top Flange Standard: ISO 5211
- Stem Operation: Driven by keys, parallel or diagonal square, or flat head
- Pressure Rating: 300 PSI (200 PSI and 250 PSI options available upon request)
- Operating Temperature: 32℉ - 176℉
- Coating: Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550 (or optional painting upon request)
- Certifications: Approved by UL and FM for fire protection systems
- Applications: Ideal for use in fire protection systems and water distribution networks, providing reliable flow control with enhanced security features through the tamper switch, ensuring critical system integrity
Download Specification Data:
